PRODUCT INTRODUCTION

3D Geomat
Update time:2022-11-19

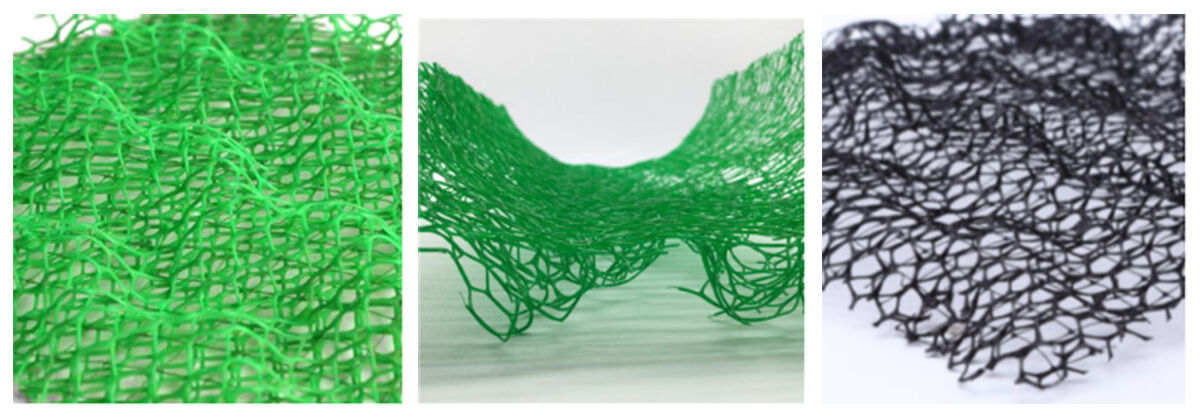

3D Geomat

3D Geomat Description

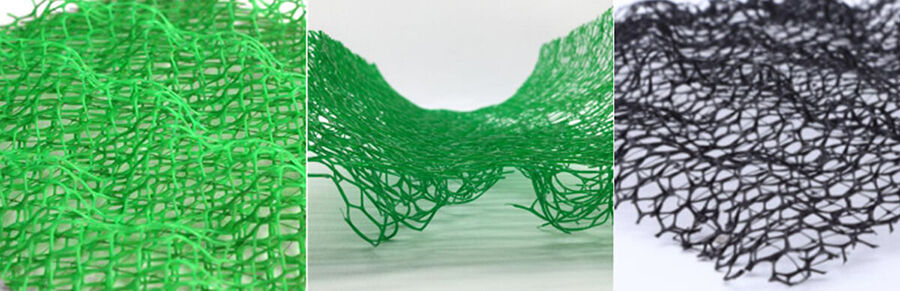

Geomat Erosion Control is a three-dimensional mat made from extruded and bi-oriented polyethylene grids. The underside of the mat is made flat to provide even contact with the prepared soil surface. The upper surface is made cuspated to provide excellent soil retention. The three dimensional structure retains a layer of top soil and anchors the growing grass roots thus providing a stable surface highly resistant the forces of rain drops and run off.


3D  Geomat Features

3D geomat can protect embankment from wind and rain before the turf has grown.

3D geomat can keep the grass seeds evenly distributed on the slope, and avoid the wind and rain from being lost.

3D geomat can absorb a large amount of heat energy, enhance ground temperature, promote grass seed germination, and prolong the growth period of plants.

The composite protective layer formed by plants can withstand high-level, high-velocity currents.

3D geomat  can replace slope materials such as concrete, asphalt, and block stones.



3D  Geomat  Applications

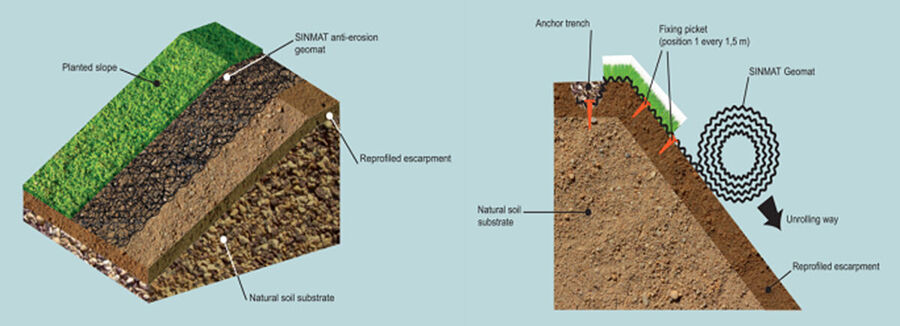

The three-dimensional plant net building technology combines the advantages of 3D geomat and plant protection slopes, which can effectively solve the problems of rock slope and high land side technology protection. Application examples show that three-dimensional vegetation network slope protection is extremely beneficial to the stability of the slope and protects it. The effect is very good.

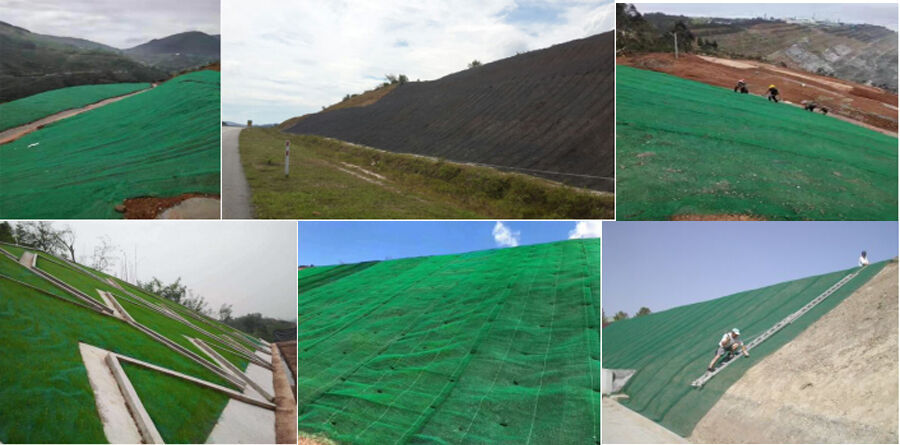

3D geomat  is mainly used for slope protection of highways, railways, rivers, dams, etc.




Technica Data Sheet

ITEMUNITSEM2EM3EM4EM5
Layers
2345
Unit Weightg/m2220260350430
Thicknessmm10121416
Tensile StrengthKN/m0.81.423.2
Elongation%<30
Color
Black/Green
Carbon Black%2~3
Raw Material
HDPE
Roll Sizem*m2×502×502×302×30

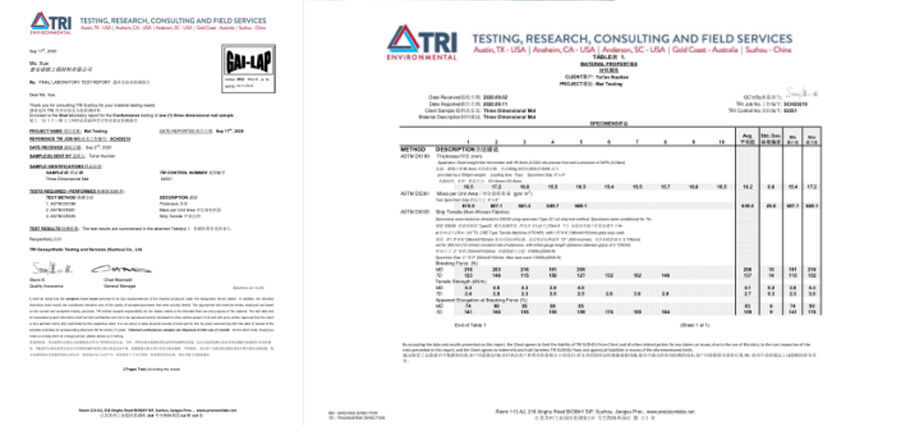

3D Geomat Certificate From TRI


About Nuolian

Nuolian had been specializing in delivering one stop geosynthetics products and solutions to worldwide customers since its foundation in 2010.  Nuolian had provided many types of effective and state of  the art  geomembranes, geotextiles, geocells, geosynthetic clay liners (GCLs), drainage boards, geogrids 3D geomat to over 36 countries. Our main customers are from Australia, France, Sweden, UK, Hong Kong, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc.

Nuolian is not only manufacturing best quality geosynthetics products but also providing professional design and installation service. OEM, ODM, custom development and fabrication are also available.
