Geomembrane in Landfill Project

Smooth Geomembrane HDPE liner Description

Smooth Geomembrane HDPE liner is the low permeable synthetic membrane liner and geotechnical engineering materials which are widely used for solid waste containment, mining and water containment applications. Nuolian smooth geomembrane HDPE liner is made of finest quality high density polyethylene (HDPE) with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our smooth geomembrane HDPE liner with excellent resistance to UV radiation and is suitable for exposed conditions.

Our smooth geomembranes are fabricated by the state of the art automatic geomembrane production lines and advanced three layered pressing technology in accordance with GRI GM13 standard. Compared with traditional concrete, asphalt and compacted clay, smooth geomembrane HDPE Liner has proven to be far more cost effective, environmentally safe, excellent durable, chemically resistant, fast deployment and easy transportation.

Smooth Geomembrane HDPE Liner Features

Excellent chemical resistance.

Outstanding stress crack capacity.

Lowest permeability.

Excellent UV resistance.

Stable low temperature embrittlement resistance.

Complete width and thickness specifications.

Cost effective.

Proven performance.

Fast deployment.

Easy transportation.

Meet or exceed all aspects of GRI GM13.

Smooth Geomembrane HDPE Liner Applications

Nuolian smooth HDPE geomembrane liner is widely used for canal, aquaculture, irrigation ponds and remediation liners, other liner applications include landfills, waste water treatment lagoons, oil and gas exploration, power plants, etc al.

Aquaculture. Geomembrane liners can be used as fish ponds, shrimp pond and other aquacultures.

Landfills. Bottom landfill liner, landfill sealing cover, leachate regulating pool liner, etc.

Water Treatment System. Smooth Geomembrane is applied to the adjustment of the power plant and sewage treatment pool or water treatment system.

Mining. HDPE Geomembrane is applied for mining industry as washing pool, pool heap leaching, heap yard, dissolving tank, storage tank, the bottom of the tailing seepage control, etc.

Other Applications. Environment protection and sanitation, water conservancy, municipal projects, landscaping, petrochemical industry, salt industry, agriculture, etc.

Smooth Geomembrane HDPE Liner Specifications

ItemUnitStandardTest FrequencyNL65NL75NL80NL100NL150NL160NL180NL200
Mechanical PropertiesThicknessmmASTM D5199per roll0.650.750.811.51.61.82
Densityg/ccASTM D1505/D79290,000 kg
0.94
Tensile Properties
 yield strengthkN/mASTM D 6693    Type IV9,000 kg1011121522242729
break strengthkN/m17.5202227404348.553
yield elongation %1212121212121212
break elongation %700700700700700700700700
Tear ResistanceNASTM D 100420,000 kg8193100125187200225249
Puncture ResistanceNASTM D 483320,000 kg208240256320480512576640
Stress Crack Resistancehr.ASTM D 5397per GRI GM-10
300 hr.
Carbon Black Content%ASTM D 42189,000 kg
2.0-3.0%
Reference PropertiedOxidative Induction Time
(a) Standard OITminASTM D 389590,000 kg
100 min.
(b) High Pressure OITASTM D 5885
400 min.
Oven Aging at 85°C retained after 90 days%ASTM D 5721


(a) Standard OIT – %
ASTM D 3895per each
55%
(b) High Pressure OIT – %
ASTM D 5885formulation
80.00%
UV Resistance
High Pressure OIT – % retained after 1600 hrs%ASTM D 5885per each formulation
50%
Roll SizeRoll Widthm
77777777
Roll Lengthm
280280210210140140105105
Size stability%2%

About Nuolian

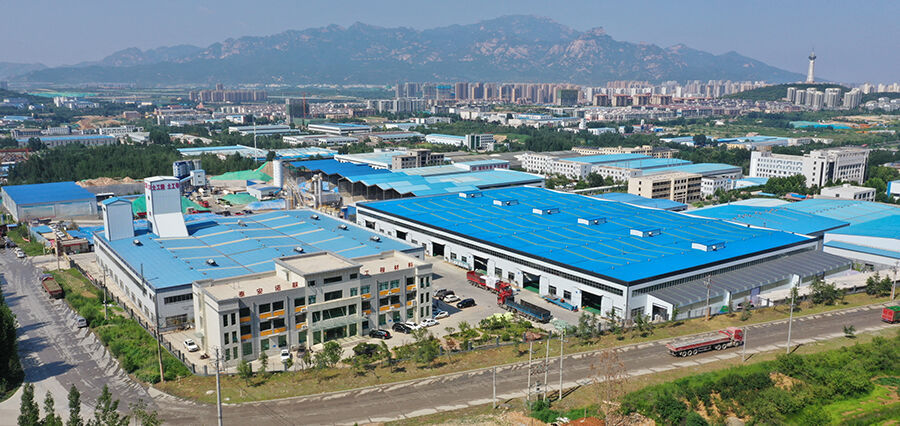

Nuolian had been specializing in delivering one stop geosynthetics products and solutions to worldwide customers since its foundation in 2010.  Nuolian had provided many types of effective and state of  the art  geomembranes, geotextiles, geocells, geosynthetic clay liners (GCLs), drainage boards, geogrids 3D geomat to over 36 countries. Our main customers are from Australia, France, Sweden, UK, Hong Kong, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc.

Nuolian is not only manufacturing best quality geosynthetics products but also providing professional design and installation service. OEM, ODM, custom development and fabrication are also available.
